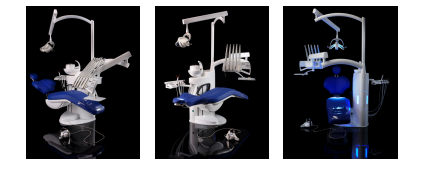

DENTAL UNIT SCOUT

OUTSTANDING DESIGN, GREAT RELIABILITY

Our Galbiati Lab, 100% Italian

Department of “research and development”, created SCOUT, a Premium Class dental unit, entirely designed in Italy, with a great sense of ergonomics and performances.

Solid, easy to use with an uncommon elegance, it’s the new born of the GALBIATI family, the first Italian production company of dental units.

TECHNICAL SPECIFICATION

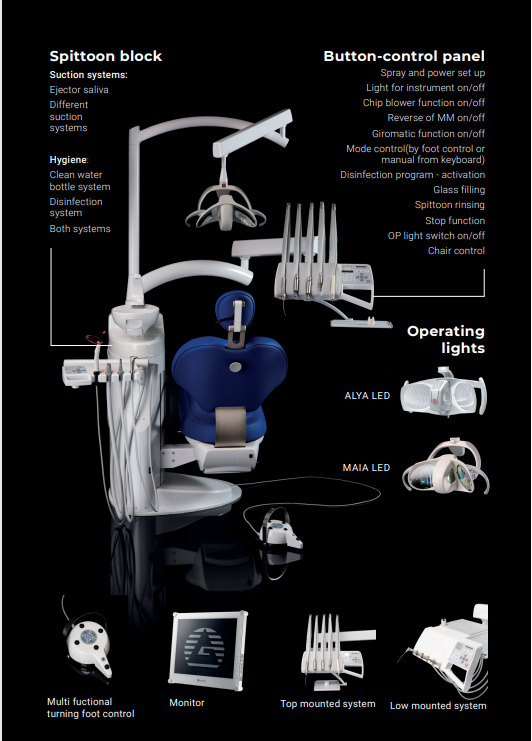

  • Type of unit: dental chair with lift system, backrest, motors for chair movements, foot control
  • Supply voltage: 100 v ac (US) – 230 v ac (EU)
  • Rated frequency: 50 hz / 60 hz
  • Max power: 50 hz 650 va
  • Input air pressure: 0,5 mpa
  • Atmospheric pressure: 70 kpa to 106 kpa
  • Input water pressure: 0,6 mpa
  • Water hardness: 8,4 dh to 12 dh

PERFORMANCES

  • Operating regulation of instruments speed and power
  • Reverse of micro motors operating speed
  • Adjustment of micro motors speed limit (0-100%)
  • Instrument disinfection tubes switch on/off
  • Integrated safe system (chair blocked while the instruments are working)
  • 4 chair memories
  • Instruments cooling switch on/off
  • Central suction system
  • Water supply system with 2 bottles (disinfection and distilled water)
