EN SCOUT LATERAL LIFT

Galbiati

EXPERIENCE AND QUALITY SINCE 1935

“When a product does not work how it should, or our customers don’t like it, for us is a challenge. We feel that from our factory only good products, functional and accessible to all must be produced. Our daily commitment is to satisfy our customer at 360° and be present before, during and after the purchase of Galbiati products, with the same passion and dedication”.

via Concordia 10
20090 Assago Milano - ITALY
PRIMA Autoclave

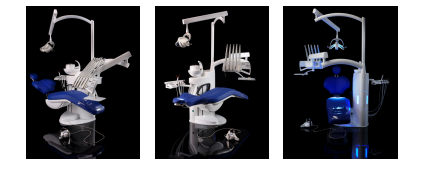

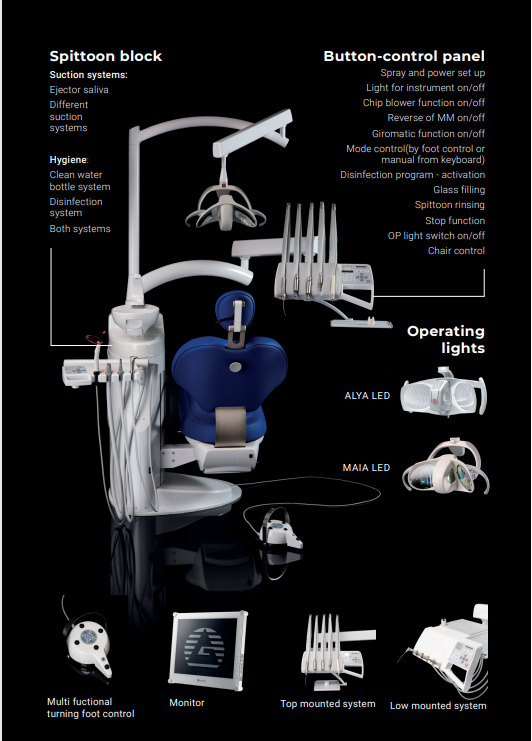

DENTAL UNIT SCOUT

OUTSTANDING DESIGN, GREAT RELIABILITY

Our Galbiati Lab, 100% Italian

Department of “research and development”, created SCOUT, a Premium Class dental unit, entirely designed in Italy, with a great sense of ergonomics and performances.

Solid, easy to use with an uncommon elegance, it’s the new born of the GALBIATI family, the first Italian production company of dental units.

TECHNICAL SPECIFICATION

  • Type of unit: dental chair with lift system, backrest, motors for chair movements, foot control
  • Supply voltage: 100 v ac (US) – 230 v ac (EU)
  • Rated frequency: 50 hz / 60 hz
  • Max power: 50 hz 650 va
  • Input air pressure: 0,5 mpa
  • Atmospheric pressure: 70 kpa to 106 kpa
  • Input water pressure: 0,6 mpa
  • Water hardness: 8,4 dh to 12 dh

PERFORMANCES

  • Operating regulation of instruments speed and power
  • Reverse of micro motors operating speed
  • Adjustment of micro motors speed limit (0-100%)
  • Instrument disinfection tubes switch on/off
  • Integrated safe system (chair blocked while the instruments are working)
  • 4 chair memories
  • Instruments cooling switch on/off
  • Central suction system
  • Water supply system with 2 bottles (disinfection and distilled water)
PRIMA Autoclave
