Technology Evolution

Technology Evolution container

Technology Evolution

Technology Evolution container

Beginning of 2010, H I F U is launched and it is regarded as first device which can deliver thermal energy to S M A S which is actual cause of aging process.

Differences

Advantages Disadvantages
Laser & IPL
  • Selectivity: Energy is only applied to Hemoglobin, Melanin, and Water.
  • Safety: Safety has been proved for 30 years through its theoretical background and technology.
  • It is hard to apply to dark skin and deliver the energy into deep dermis & subcutaneous fat.
RF (Radio frequency)
  • It can deliver the energy into deep dermis.
  • It generates stable and high thermal energy.
  • Non selectivity.
  • It is hard to transfer the energy into SMAS layer.
Fractional Laser
  • Partial, selective treatment is possible and shortening downtime.
  • Effective for various scar.
  • The side effects, such as PIH or erythematic happens.
  • It is hard to deliver the energy into deep dermis.
HIFU
  • Treatment up to SMAS layer creating 'Focal Zone'
  • No damage to the Epidermis and without downtime
  • Need knowledge on nerve and blood systems
  • Need consumables like HIFU cartridge
number first
Technology Evolution

HIFU (High Intensity Focused Ultrasound)

HIFU Diagram

High Intensity Focused Ultrasonic Surgical unit, HIFU

HIFU is an equipment to treat various cancers like liver cancer, uterine cancer, and breast cancer through thermal energy which created in the focal point of supersonic wave collected through ultrasound transducer.

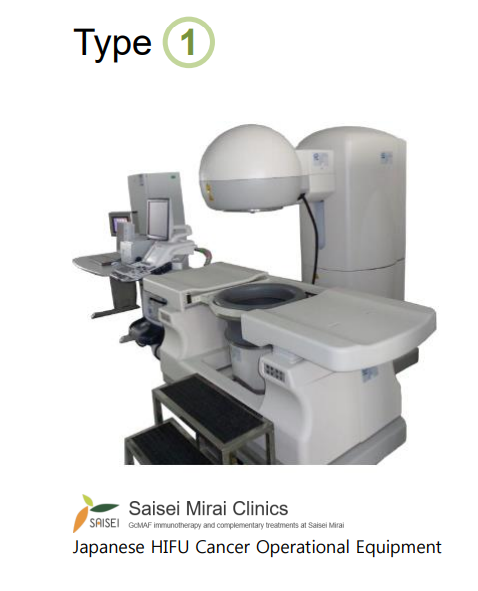

Medical Equipment Utilizing HIFU

HIFU Diagram
HIFU Diagram

Principles of HIFU

Emit High Intensity Focused Ultrasound (HIFU)
Delivery of HIFU Energy into the deep skin
Induce Vibration among the tissue particles in the target area
Generate Thermal Energy caused by friction
By wound healing without downtime care
Coagulation Zone (Denaturation: 60~70℃)
Skin lifting and rejuvenation

Principles of HIFU

HIFU Diagram

SMAS [Superficial Muscular Aponeurotic System] is the area of between just below the dermis and the top portion of the muscle layer

In aging process, this muscle layer could make the reason of wrinkle and loosen skin

number first
Technology Evolution

The strength of HIPRO

The strength of HIPRO
  • HIFU energy penetrates and make thermal coagulation to SMAS area, facial, deep dermis and Subcutaneous fibrous tissue.
  • Natural wound healing process creates new elastic collagen, hence resulting in lift and tighten loose skin for rejuvenation over time.

The strength of HIPRO

Before and after face contouring

Face contouring

3 cartridges of 1.5mm, 3.0mm and 4.5mm depths are designated for face contouring.

Each cartridge delivers its energy strictly on the targeted area with on average 65 Celsius degrees on the coagulation zone.

The strength of HIPRO

Before and after face contouring

Body contouring

2 cartridges of 8mm and 13mm depths are designated for body contouring.

Each cartridge delivers its energy strictly on the targeted area with on average 65 Celsius degrees on the coagulation zone.

Configuration of HIPRO

Technology Evolution container

Medical Equipment Utilizing HIFU

HIFU Diagram
  • Select Mode Screen
HIFU Diagram
  • Main Screen

Strong Point of HIPRO

HIPRO Lifting System
Half

Half

Full

Full

Dual

Dual

① Dual: Make shot start from opposite position

② Half: Choose Full or Half length of cartridge (Half: 15mm)

③ Full: Choose Full or Half length of cartridge (Full: 30mm)

Strong Point of HIPRO

1
Continuous shooting with x1, x2, x3, x4, x5 for easy operation
2
Reasonable price of unit and its consumables
3
Collagen remodeling and SMAS contraction in single treatment
4
More precise and longer treatment term
HIPRO Device

Strong Point of HIPRO (Customization)

Grand Type
Grand Type
HIPRO-S Type
HIPRO-S Type
STAND Type
STAND Type

Expectation in Selection of HIPRO

Reasonable equipment and its consumable price
Application of reasonable treatment fee
10,000 shots each cartridge
Increase of patients
Increase of satisfaction on cost effectiveness
Differentiation with other hospitals
Satisfactory clinical result

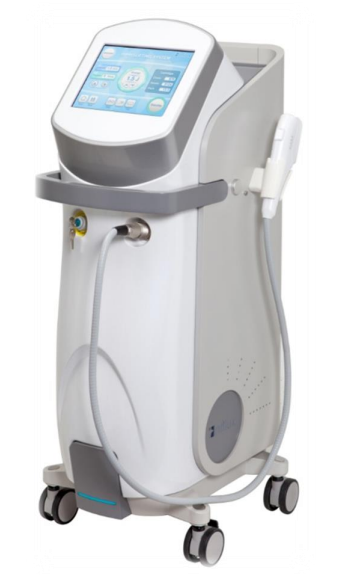

Specification (HIPRO, grand type)

HIFU Machine Image
Energy Source HIFU (High Intensity Focused Ultrasound)
Energy output 0.1J~2.0J/cm²
Electrical AC 100-230V, 50/60Hz
Interval 1.0mm ~ 2.0mm (0.1mm step)
Shot length 30mm (full length), 15mm (Half length)
Cartridge A A(1.5mm)-10,000 shots (for dermis)
Cartridge B B(3.0mm)-10,000 shots (for lower dermis)
Cartridge C C(4.5mm)-10,000 shots (for SMAS)
Cartridge D D(8.0mm)-10,000 shots (for Body)
Cartridge E E(13.0mm)-10,000 shots (for Body)
Dimension 410X500X1100mm (W x D x H)
Weight 60Kg

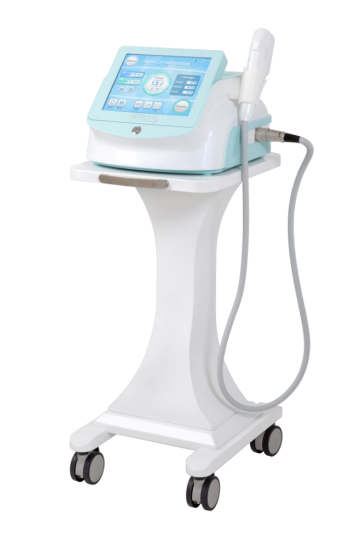

Specification (HIPRO, stand type)

HIFU Machine Image
Energy Source HIFU (High Intensity Focused Ultrasound)
Energy output 0.1J~2.0J/cm²
Electrical AC 100-230V, 50/60Hz
Interval 1.0mm ~ 2.0mm (0.1mm step)
Shot length 30mm(full length), 15mm(Half length)
Cartridge A A(1.5mm)-10,000 shots (for dermis )
Cartridge B B(3.0mm)-10,000 shots (for lower dermis)
Cartridge C C(4.5mm)-10,000 shots (for SMAS)
Cartridge D D(8.0mm)-10,000 shots (for Body)
Cartridge E E(13.0mm)-10,000 shots (for Body)
Dimension 350X549X1027mm(W x D x H)
Weight 45Kg

Specification (HIPRO, compact type)

HIFU Machine Image
Energy Source HIFU (High Intensity Focused Ultrasound)
Energy output 0.1J~2.0J/cm²
Electrical AC 100-230V, 50/60Hz
Interval 1.0mm ~ 2.0mm (0.1mm step)
Shot length 30mm(full length), 15mm(Half length)
Cartridge A A(1.5mm)-10,000 shots (for dermis )
Cartridge B B(3.0mm)-10,000 shots (for lower dermis)
Cartridge C C(4.5mm)-10,000 shots (for SMAS)
Cartridge D D(8.0mm)-10,000 shots (for Body)
Cartridge E E(13.0mm)-10,000 shots (for Body)
Dimension 350X400X270mm(W x D x H)
Weight 10Kg
number first
Technology Evolution

**If you click this pictures, You can see the hipro video. (YOUTUBE POP-UP)

number first
Technology Evolution

BEFORE / AFTER PICTURES

• Before

Before Picture

• After 1-2 months

After Picture
► PARAMETER
Energy :
3mm (0.7J) / 4.5mm (1.2J)

BEFORE / AFTER PICTURES

• Before

Before Picture

• After 1-2 months

After Picture
► PARAMETER
Energy :
3mm (0.7J) / 4.5mm (1.2J)

BEFORE / AFTER PICTURES

• Before

Before Picture

• After 1-2 months

After Picture
► PARAMETER
Energy :
3 m m ( 0 . 9 J ) / 4 . 5 m m ( 1 . 2 J )

BEFORE / AFTER PICTURES

• Before

Before Picture

• After 1-2 months

After Picture
► PARAMETER
Energy :
1 . 5 m m ( 0 . 6 J )

BEFORE / AFTER PICTURES

• Before

Before Picture

• After 1-2 months

After Picture
► PARAMETER
Energy :
1 . 5 m m ( 0 . 6 J )

BEFORE / AFTER PICTURES

• Before

Before Picture

• After 1-2 months

After Picture
► PARAMETER
Energy :
3 m m ( 1 . 2 J ) / 4 . 5 m m ( 1 . 2 J )

PATIENT MONITOR


P12

PATIENT MONITOR


CE  3A 345 Lakeshore Rd E, Oakville, ON L6J 1J5, Canada

0016478745002 | sales@3a-medical.com | www.3a-medical.com


PRODUCT SPECIFICATION

ECG

Lead mode Standard 5-lead
ECG ADC sample rate ≥1200 Hz
Input noise level ≤30 μV
Patient leakage current ＜15 μA
Pacemaker detection YES
Differential input impedance ≥5 MΩ
ECG input signal range ±8.0 mV
HR range 25 - 300 bpm
HR measure accuracy ±10 % or ±5 bpm
Gain selection ×0.25, ×0.5, ×1, ×2, ×4
Baseline recovery time ≤3s (monitor), ≤1s (surgery)
Scan speed 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
CMRR ≥107 dB (Expand), ≥110 dB (Monitor), ≥119 dB (Surgery)

RESP

RESP range 0 – 120 bpm
RESP accuracy ±2 rpm
Measurement method Impedance between RA - LL (R-F)

SpO2

SpO2 range 35 - 100%
SpO2 resolution 1%
RR range 25 - 300 bpm
RR accuracy ± 3 bpm
RR resolution 1 bpm
SpO2 accuracy 70% - 100% ± 2%, 0% - 69% unspecified

NIBP

Application Adult, pediatric
Measure mode Manual / Cycle
Parameters SYS, DIA, MEAN
Blood pressure cycle interval 1, 2, 5, 10, 15, 20, 30, 60, 120 min
Software overpressure protection Adult 300 mmHg, Pediatric 250mmHg
Blood pressure range Adult 10 ~ 260 mmHg, Pediatric 10 ~ 200 mmHg

TEMP

Channel 2
Measure range 0°C - 49°C
Accuracy ± 0.2°C
Alarm range 0.1°C - 50.0°C

345 Lakeshore Rd E, Oakville, ON L6J 1J5, Canada

0016478745002 | sales@3a-medical.com

www.3a-medical.com

Logo

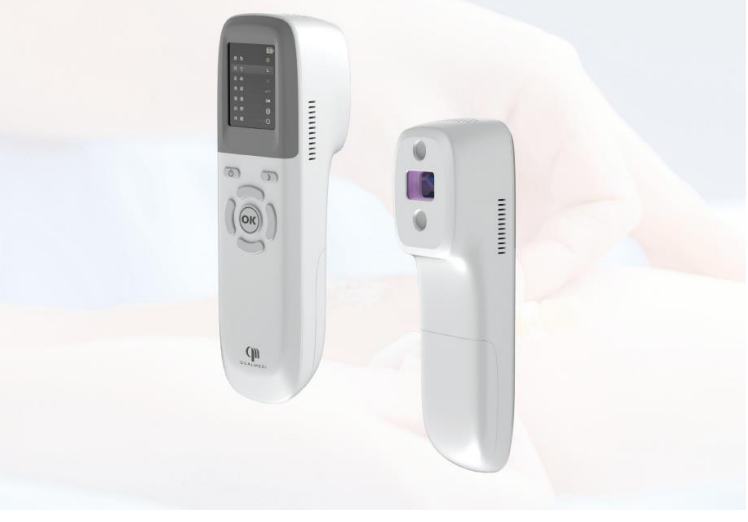

VEIN VIEWER QV-600

remote image

Product Introduction

QV-600 is a portable vein finding device. It can project the blood vessels image on skin surface accurately and timely. The ergonomic design makes it very comfortable to hold. And the option- al desktop stand and mobile trolley are available for multiple application situations.

Application

Help doctors and nurses easily find veins of various patients, such as obesity, hairy or dark skin people, etc. It highly increases the success rate of puncture thus reduces the cost and pain.

Pediatrics/ Plastic Surgery / Vascular Surgery / Oncology / Radiology / Laboratory / Emergency / Outpatient

second image

Functions

This machine has various user-defined functions, which can adapt to different ages, body shapes, skin colors, weights and various operating environments.

  • 12 Colors Available: Suitable for different skin colors or environments
  • 3 Sizes Available: Suitable for adults, children and newborns
  • 6 Levels of Brightness: Adjust the projection image to the most comfortable brightness.
  • Inversion: Reduce arm hair interference and make blood vessels clearer.
  • Enhancement Mode: Enhance the clarity of blood vessel detection
  • Sleep Mode: enter into low power mode when the user needs short intervals and can be waked up quickly
  • Power monitoring: The remaining battery is displayed on the screen, alert the user when the battery is low
  • Language: 10 languages can be switched
  • Photograph: Store venous images for medical staff to track and analyze pathology.
  • Automatically shutdown without operation for 35 minutes

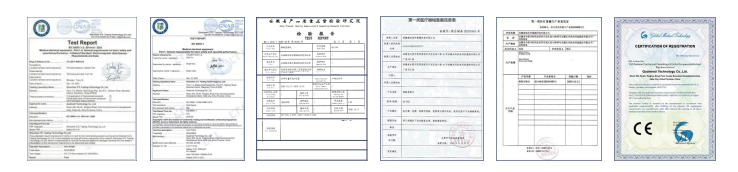

Certification

secon img third img

Technical Parameter

Light: The human body's harmless infrared light
Distance: 15-25cm
Infrared Wave: 760-940nm
Noise: ≤30dB
Weight: 450g
Product size: 24cm(L) * 6cm(W) * 6.5cm(H)
Batteries: Samsung 4800mAh lithium battery
Power: DC 5V 4.5A
The adapter: 100V-240V , AC 50Hz-60Hz ; 5V 4.5A
LCD screen: 2.4 inch
Image: 3D pseudo-color and AI algorithm
Accuracy of blood vessel position: ±0.3mm
Infrared detection depth: 0-10mm
Language: 1. Chinese 2. English 3. French 4. Polish
5. Vietnamese 6. Russian 7. Italian 8. Korean
9. German 10. Spanish
American TI projection technology

Option:
